Semi Automatic Barrel / Drum Filling Machine

Semi Automatic Barrel / Drum Filling Machine


Single‑head weight filling system for 100–250 L drums and barrels. Gear pump feed, integrated roller conveyor, and a stable weighing device deliver up to ≈45 barrels/hour (200 L).


View Specs Configure & Quote

  • Net/gross weight modes
  • High‑flow gear pump
  • Touchscreen control
  • Roller conveyor

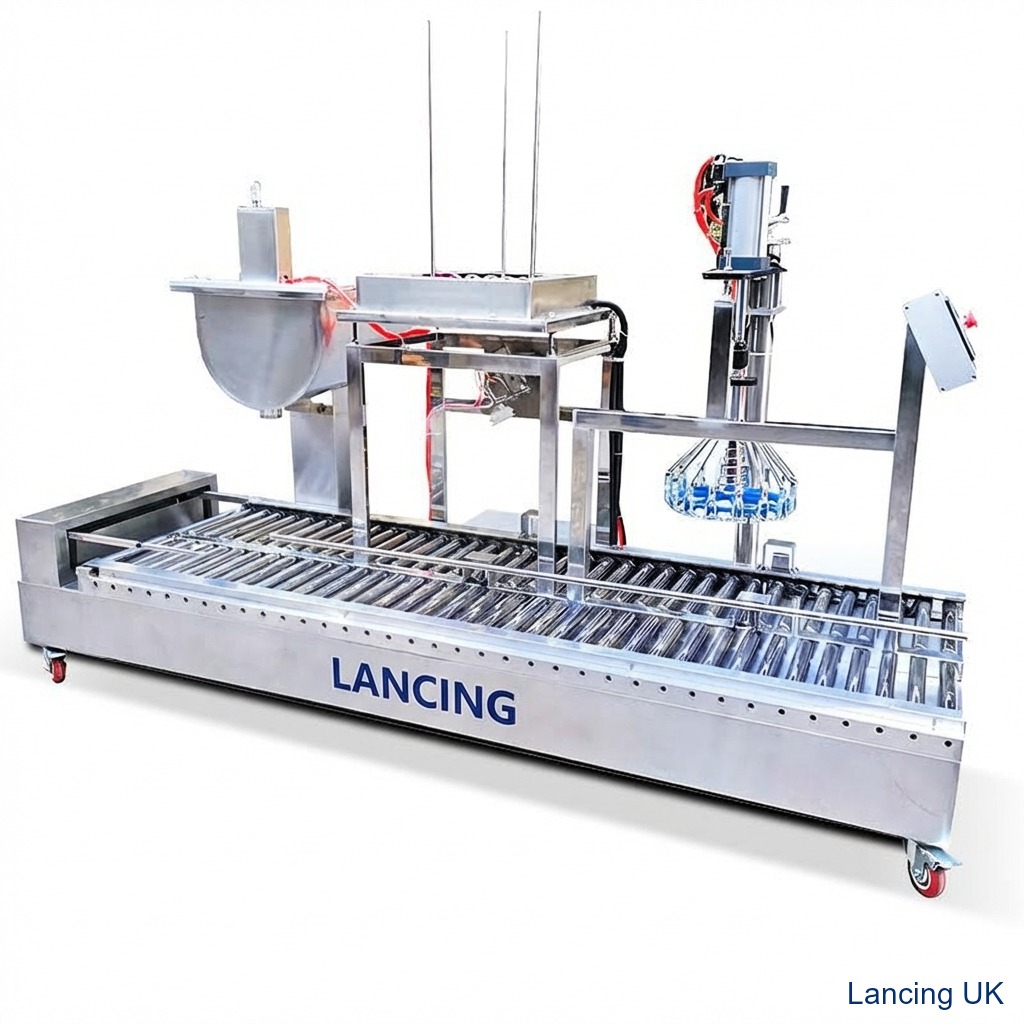

Semi-automatic drum and barrel weighing filler with roller conveyor

Key Features

Net/gross weight modes

Automatic tare and precise weight control for large containers.

High‑flow gear pump

Handles rust remover, engine oil and similar liquids efficiently.

Touchscreen control

Visual working data and multi‑language interface.

Roller conveyor

5 m section moves drums with minimal labour.

Pneumatic nozzle

Stable flow and improved accuracy on large volumes.

Safety & accuracy

≤±0.2% typical, with 0.6 MPa air supply.

Technical Specifications

Filling System

Model
LUYTW250L
Heads
1
Filling range
100–250 L
Output
≤45 barrels/hour (200 L)
Pump
Gear pump
Accuracy
≤±0.2% (material‑dependent)

Utilities & Dimensions

Voltage
380 V 50 Hz (110/220 V optional)
Power
≈11.5 kW
Air supply
0.6 MPa
Conveyor length
≈5 m (customisable)
Machine size
≈450 × 1000 × 1700 mm
Package
≈1360 × 1100 × 1840 mm; ≈420 kg

Performance depends on product, container, and setup. Ask us for a timed trial.

Typical Applications

Chemicals & coatings

Rust remover, solvents (compatibility dependent).

Oils & lubricants

Engine oil and similar heavy liquids.

Industrial liquids

Large‑volume liquid packaging to drums/barrels.

What’s Included

  • Weigh‑fill base with single head
  • Touchscreen control with language options
  • Pneumatic filling nozzle
  • 5 m roller conveyor

Configure Your Machine


Tell us about your application. We’ll confirm compatibility and quote the best configuration.

  • Liquid type/viscosity and container (L size)
  • Required throughput (barrels/hour)
  • Drum bung/neck type and earthing needs
  • Line height and conveyor layout
