Vertical Form Fill & Seal Machines

Vertical Form Fill & Seal Machines

A vertical form fill and seal (VFFS) machine is an automated packaging system that forms, fills, and seals bags or pouches from a roll of film in a vertical orientation. These machines can pack powders & granules or liquids. The machines can incorporate the powder fillers described above. Forming: The machine takes a flat roll of packaging film and forms it into a tube-like shape.  Filling: The formed tube is filled with the product, often utilizing gravity for vertical filling.  Sealing: The filled tube is then sealed both horizontally (to create a top and bottom seal) and vertically (to create the continuous bag or pouch).  Efficiency: VFFS machines are known for their high speed and efficiency, making them suitable for mass production.  Versatility: They can handle various bag styles, including pillow bags, gusseted bags, and stand-up pouches, and can be adapted for different products and package sizes.

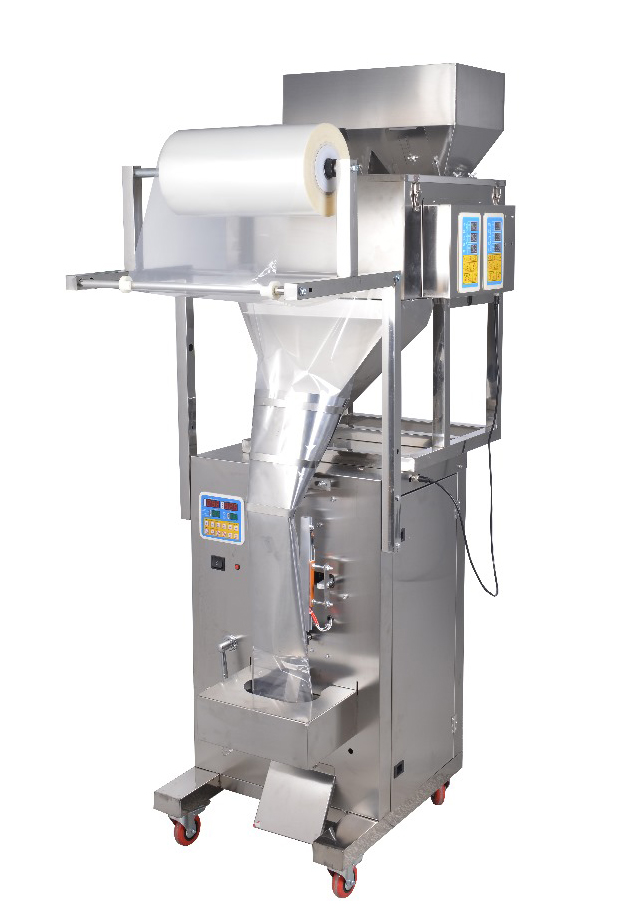

CBW-N Series VFFS

The CBW N Series VFFS machine is a versatile single or multi-head weigh depositor suitable for demanding industrial applications. With food grade contact parts this machine is ideal for packaging a wide range of powdered, granular or processed product types.
Function: 1000 grams VFFS machine
  Sealing method: 3 side seal or back sealing
  Bag size: Film width 5-20cm, seal 1-18cm
  Weighing range: 10-1000grams
  Packing speed: 20-30 times/min (depending on material)
  Precision: +/- 0.2g (depending on material)

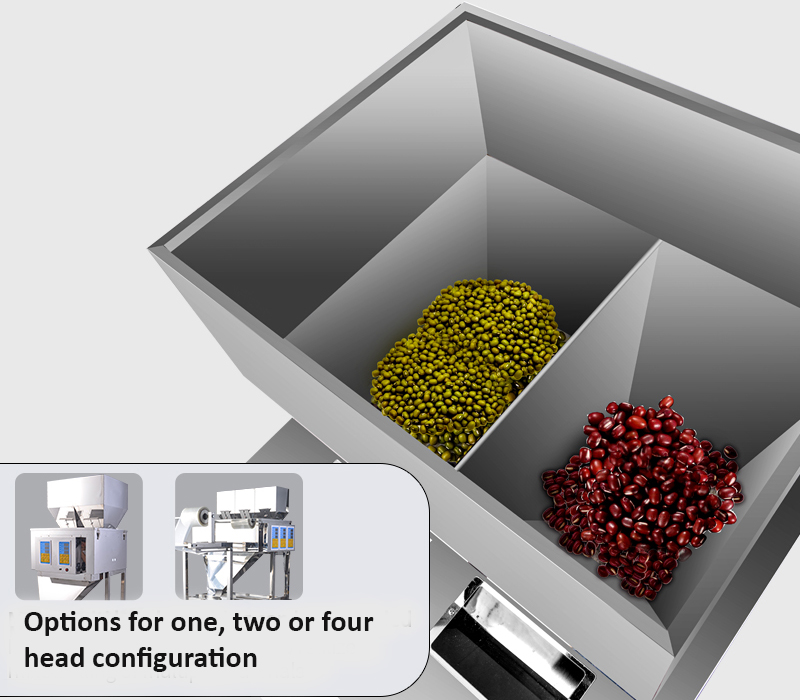

The machine can be equipped with up to four weighing heads.
The machine can be equipped with single, twin or four weighing heads and can fill similar or different products into the same pack.

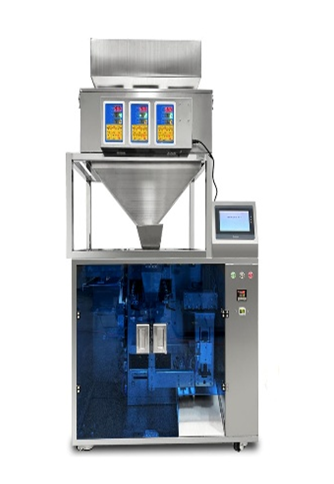

The CBW Range is a state of the art filling machine that is perfect for companies looking to pack dry ingredients between 20–5000g

These modular 1 head linear weighers, can be supplied as a semi-automatic solution suitable for filling pots, jars, pouches or bags. The machine can be configured for fully automatic operation.

Just load your ingredients into the top of the hopper, enter your desired weight on the digital display and the intelligent micro-computer will automatically fill your ingredients into your packaging, in a matter of seconds, with a 1 - 5g or 1% accuracy, whilst displaying a count of how many have been dispensed.

✔ Filling range 20- 5000g
✔ Pack up to 40 bags per minute
✔ Accurate to within 1%
✔ Works with a large variety of dry ingredients

The CBW provides a cost-effective and reliable solution to speed up packing operations and a machine that is capable of larger and faster capacities. The CBW machines will save you time, lower your product waste, improve your dispensing accuracy and reduce the risk of contaminants entering your product.

In most instances, compared to packing by hand, the CBW machines will return your investment within a few months. The CBW machines work with a huge variety of dry ingredients and powders, including larger and more complex materials.
